Key Takeaways
- A cleanroom is a highly controlled environment designed to maintain extremely low levels of airborne particulates, such as dust, airborne microbes, aerosol particles, and chemical vapors.
- Cleanrooms are classified by the ISO 14644-1 standard, ranging from ISO 1 (cleanest) to ISO 9 (room air equivalent), based on the number and size of particles permitted per volume of air.
- The core technology behind any cleanroom is the HEPA (High-Efficiency Particulate Air) or ULPA filter, which traps particles as small as 0.3 microns.
- Key applications include semiconductor manufacturing, pharmaceutical production, medical device assembly, and biotechnology.
Introduction to Cleanroom Technology
In modern manufacturing and scientific research, the invisible enemy is often the most dangerous. A single speck of dust, invisible to the naked eye, can ruin a microchip, contaminate a life-saving vaccine, or compromise a critical scientific experiment. This is where cleanroom technology becomes essential.
A cleanroom is a specially constructed, environmentally controlled enclosed space where the concentration of airborne particles is kept within strictly specified limits. However, modern cleanrooms control much more than just dust. They are complex engineering systems designed to regulate temperature, humidity, air pressure, airflow patterns, and even electrostatic discharge (ESD).
How Does a Cleanroom Work?
The fundamental principle of a cleanroom is continuous air filtration and controlled airflow. Unlike a standard office building where air is simply cooled or heated, a cleanroom constantly flushes out contaminants.

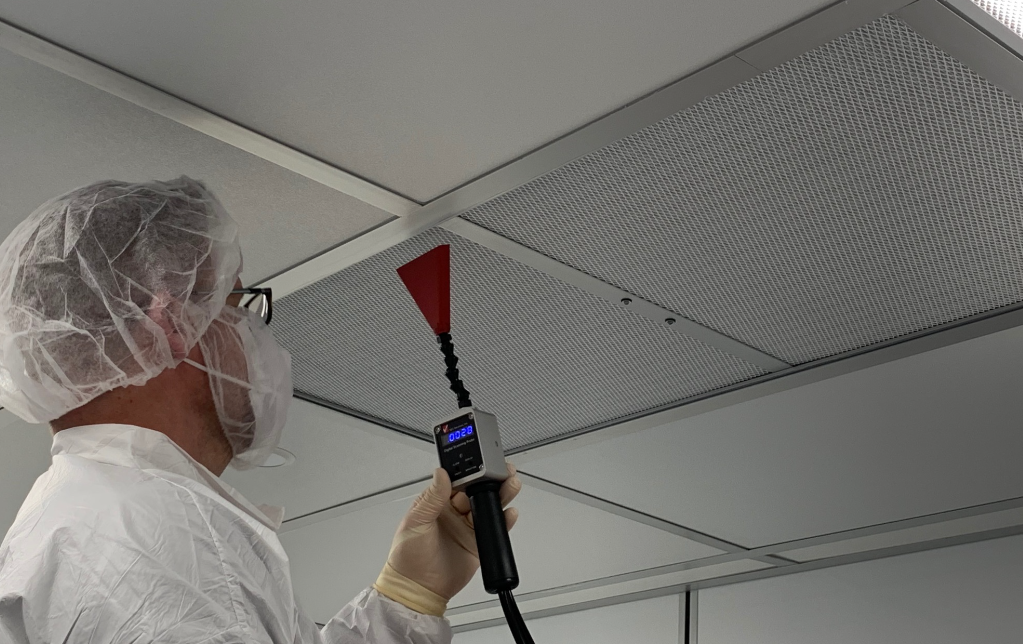

The Role of HEPA and ULPA Filters
The heart of any cleanroom is its filtration system. Cleanrooms utilize High-Efficiency Particulate Air (HEPA) filters or Ultra-Low Penetration Air (ULPA) filters to trap particles that enter the room.
- HEPA Filters: Designed to capture at least 99.97% of particles that are 0.3 microns in diameter.
- ULPA Filters: Provide even stricter filtration, capturing 99.999% of particles down to 0.12 microns.
To put this into perspective, a human hair is approximately 50 to 70 microns in diameter. Cleanroom filters are capturing particles that are hundreds of times smaller than the width of a hair.
Airflow Principles: Laminar vs. Turbulent Flow
Cleanrooms employ specific airflow patterns to ensure that any particles generated inside the room (by people or machinery) are quickly swept away before they can settle on critical surfaces.
1. Unidirectional (Laminar) Airflow

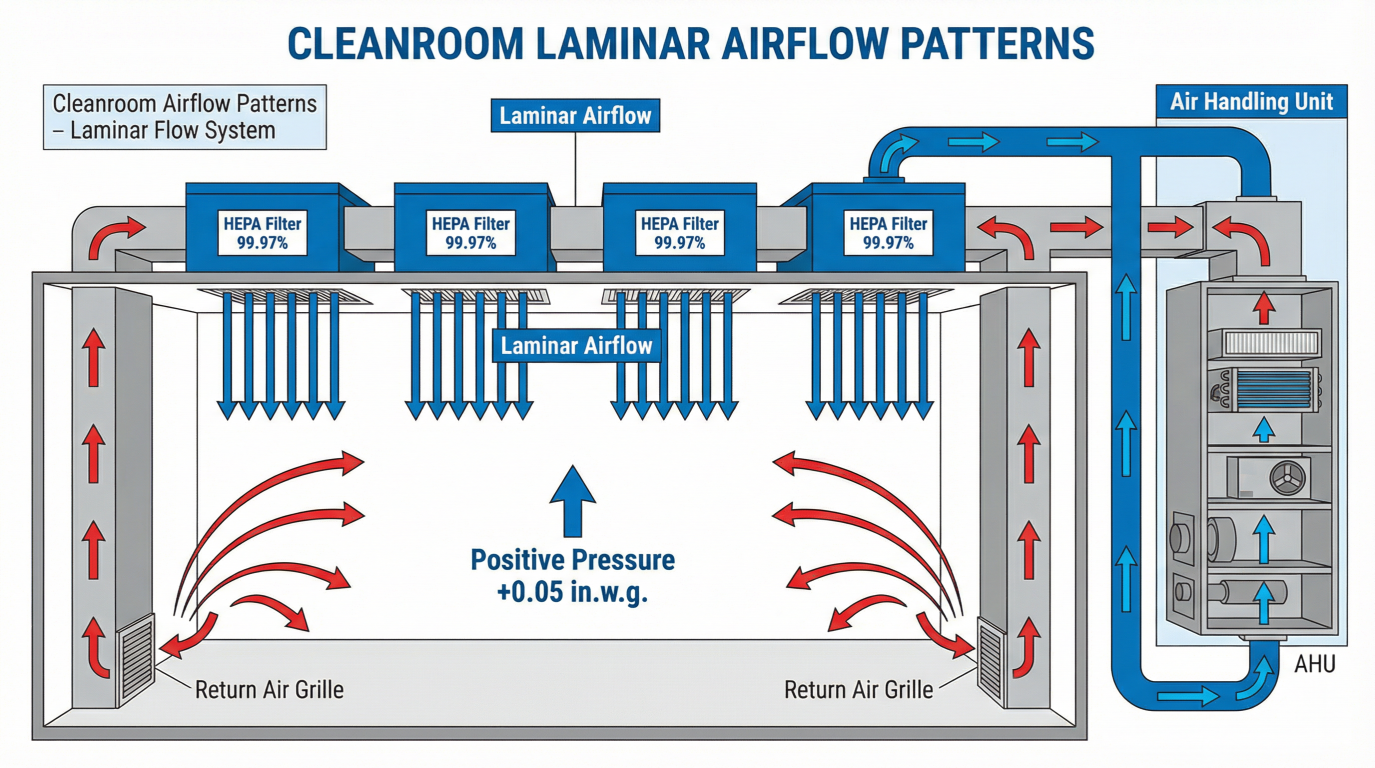

In highly classified cleanrooms (ISO 1 to ISO 5), air is directed in a straight, parallel path—usually from the ceiling down to the floor. This “piston effect” pushes contaminants directly out of the room through floor-level return grilles.
2. Non-Unidirectional (Turbulent) Airflow
In lower classification cleanrooms (ISO 6 to ISO 8), filtered air enters through ceiling diffusers, mixes with the room air to dilute contaminants, and is then exhausted through low-wall returns.
Positive Pressure Control
Most cleanrooms operate under positive pressure. This means the air pressure inside the cleanroom is intentionally kept higher than the pressure in the surrounding corridors or adjacent rooms. If a door is opened or a small leak exists, the clean air rushes out, preventing contaminated air from flowing in.
The only exception is hazardous material cleanrooms (such as those handling infectious diseases or toxic chemicals), which operate under negative pressure to keep dangerous agents contained.
Cleanroom Classifications (ISO 14644-1)
Cleanrooms are not one-size-fits-all. They are classified based on the maximum allowable number of particles per cubic meter of air. The global standard for this is ISO 14644-1.
| ISO Class | Max Particles/m³ (≥0.5 µm) | US FED STD 209E Equivalent | Typical Application |
|---|---|---|---|
| ISO 3 | 35 | Class 1 | Semiconductor wafer fabrication |
| ISO 4 | 352 | Class 10 | Advanced microelectronics |
| ISO 5 | 3,520 | Class 100 | Pharmaceutical aseptic filling |
| ISO 6 | 35,200 | Class 1,000 | Medical device assembly |
| ISO 7 | 352,000 | Class 10,000 | General pharmaceutical manufacturing |
| ISO 8 | 3,520,000 | Class 100,000 | Cleanroom gowning areas, packaging |
Note: The older US Federal Standard 209E was officially canceled in 2001, but its terminology (e.g., “Class 100”) is still widely used in the industry.
Types of Cleanroom Construction
When planning a cleanroom project, facility managers must choose the appropriate construction method based on their ISO requirements, budget, and future flexibility needs.
1. Modular Cleanrooms
Modular cleanrooms are built using prefabricated sandwich panels (typically featuring EPS, Rockwool, or Aluminum Honeycomb cores). They offer the best balance of performance and flexibility.
Pros: Fast installation, Relocatable, Easy to expand, Excellent thermal insulation
Cons: Higher initial material cost than softwall.
2. Hardwall Cleanrooms (Stick-Built)
These are permanent structures built using traditional construction methods (drywall, steel studs) and finished with specialized cleanroom paints or epoxy coatings.
Pros: Can be custom-built to any architectural shape
Cons: Permanent (cannot be moved) Messy construction process Longer build time
3. Softwall Cleanrooms
Softwall cleanrooms use clear vinyl strip curtains suspended from a free-standing aluminum or steel frame, with Fan Filter Units (FFUs) mounted on top.
Pros: Highly cost-effective, Portable, Quick to assemble
Cons: Limited to lower ISO classes (usually ISO 7 or 8), Poor temperature/humidity control
The Biggest Source of Contamination: People
Despite advanced HVAC systems and HEPA filters, the most significant source of contamination in any cleanroom is the personnel working inside it. A stationary person sheds roughly 100,000 particles per minute. A person walking briskly can shed up to 10,000,000 particles per minute.
To mitigate this, strict gowning protocols are enforced. Depending on the ISO class, personnel must wear specialized cleanroom garments made from non-linting synthetic fabrics (like Tyvek or Gore-Tex).
Typical Gowning Sequence for an ISO 5 Cleanroom:
- Bouffant cap (hair net)
- Shoe covers
- Cleanroom coverall (bunny suit)
- Face mask
- Protective goggles
- Sterile gloves (often double-gloved)
- Cleanroom boots
Before entering the main cleanroom, personnel often pass through an Air Shower—a specialized chamber that uses high-velocity jets of filtered air to blow loose particles off the garments.
Conclusion
A cleanroom is a critical investment for industries where microscopic contamination can lead to catastrophic product failure. Understanding the basics of airflow, HEPA filtration, ISO classifications, and personnel protocols is the first step in designing a facility that meets your specific manufacturing or research needs.
If you are planning a new cleanroom project or upgrading an existing facility, partnering with an experienced cleanroom manufacturer is crucial to ensure compliance, efficiency, and long-term reliability.
Frequently Asked Questions (FAQ)
Q: What is the difference between a cleanroom and a sterile room?
A: A cleanroom controls particulate matter (dust, skin cells). A sterile room specifically controls viable microorganisms (bacteria, viruses). While all sterile rooms are cleanrooms, not all cleanrooms are sterile. Pharmaceutical cleanrooms must be both.
Q: How often do HEPA filters need to be replaced?
A: In a typical cleanroom environment, HEPA filters last between 3 to 5 years. However, this depends heavily on the pre-filtration system, the cleanliness of the surrounding environment, and the hours of operation. Annual certification testing will determine when a filter needs replacement.
Q: Can I upgrade an existing office space into a cleanroom?
A: Yes, this is often done using modular cleanroom panels built inside the existing structure. However, the existing building’s HVAC capacity, ceiling height, and floor load-bearing capacity must be evaluated first.
