Pharmaceutical Cleanroom Design: Meeting FDA and EU GMP Standards

Key Takeaways

• Pharmaceutical cleanrooms are the most heavily regulated controlled environments, requiring strict adherence to FDA 21 CFR 210/211 and EU GMP Annex 1 guidelines.
• The primary goal is to prevent both particulate contamination and microbial contamination (sterility) during drug manufacturing.
• EU GMP Grade A (equivalent to ISO 5) is required for high-risk operations like aseptic filling, while Grades B, C, and D serve as background environments.
• Facility design must incorporate unidirectional airflow, strict pressure cascades, and dedicated personnel/material airlocks to prevent cross-contamination.
• Continuous environmental monitoring and rigorous validation (IQ/OQ/PQ) are mandatory for compliance.

Introduction to Pharmaceutical Cleanrooms

Designing a cleanroom for semiconductor manufacturing is challenging, but designing one for pharmaceutical production is an entirely different challenge. While electronics manufacturers worry about dust ruining a microchip, pharmaceutical manufacturers must worry about bacteria, viruses, and endotoxins compromising a life-saving drug.

The stakes are incredibly high. A single contamination event can lead to massive product recalls, severe regulatory action, and, most importantly, patient harm.

Therefore, pharmaceutical cleanroom design is governed by the strictest regulations in the world, primarily FDA 21 CFR Parts 210 and 211 in the United States, and EU GMP Annex 1 in Europe.

The Regulatory Landscape: FDA vs. EU GMP

While both the FDA and the European Medicines Agency (EMA) aim to ensure drug safety, their classification systems differ slightly. The industry standard is to design facilities that comply with both, often following the more stringent EU GMP Annex 1 guidelines (updated in 2022).

EU GMP Grades Explained

The EU GMP guidelines classify cleanrooms into four grades (A, B, C, and D) based on the risk of the manufacturing operation.

Note: Grade A must maintain ISO 5 even during operation, while Grade B can drop to ISO 7 during operation.

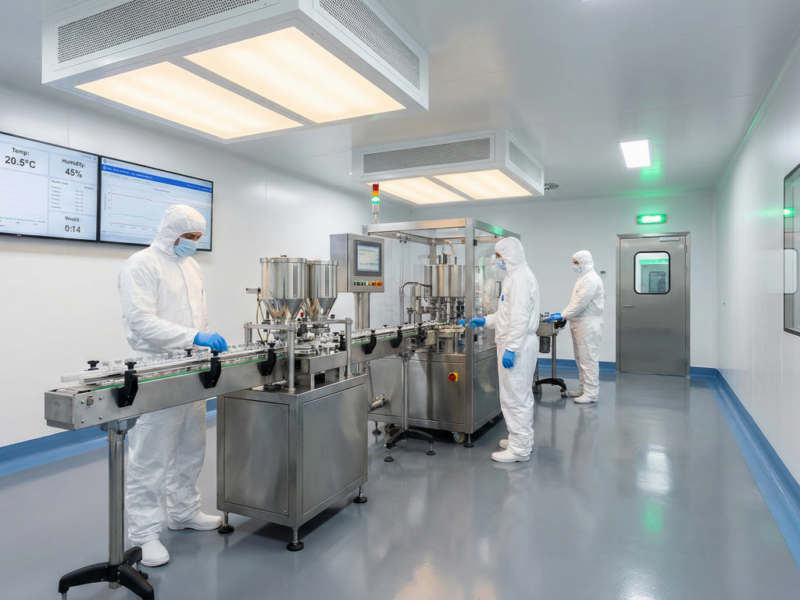

Core Principles of Pharmaceutical Cleanroom Design

Designing a compliant facility requires a holistic approach that integrates HVAC engineering, architectural layout, and operational workflows.

1. The Pressure Cascade

To prevent contamination from entering critical zones, pharmaceutical cleanrooms utilize a pressure cascade. The cleanest room (e.g., the Grade A filling room) is kept at the highest positive pressure. As you move outward to less critical areas (Grade B, then C, then D), the pressure incrementally decreases.

If a door is opened between a Grade B and Grade C room, the air will always flow out of the cleaner room, pushing contaminants away. The standard pressure differential between adjacent rooms of different grades is typically 10 to 15 Pascals (Pa).

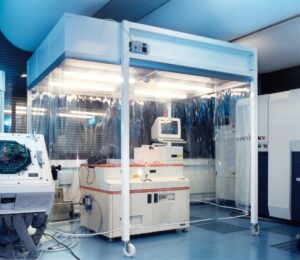

2. Unidirectional Airflow (Laminar Flow)

In Grade A zones where the product is exposed, turbulent airflow is unacceptable because it can swirl contaminants onto the product. Instead, unidirectional airflow (often called laminar flow) is required.

HEPA or ULPA filters cover the entire ceiling above the critical zone, pushing a solid, uniform column of sterile air downward at a specific velocity (typically 0.36 to 0.54 meters per second). This “sweeps” any particles generated by machinery or personnel directly down to low-wall return grilles.

3. Airlocks and Pass Boxes

Personnel and materials are the two biggest vectors for contamination. They must never enter a cleanroom directly from an uncontrolled environment.

• Personnel Airlocks (PAL): A series of gowning rooms where operators transition from street clothes to sterile cleanroom garments. The airlock acts as a pressure buffer.
• Material Airlocks (MAL) / Pass Boxes: Small, interlocked chambers used to transfer materials (like sterilized vials or tools) between rooms of different grades. The interlocking doors ensure that both doors cannot be open simultaneously, preventing a loss of pressure.

4. Cleanable Surfaces and Materials

Every surface in a pharmaceutical cleanroom must be smooth, non-porous, non-shedding, and resistant to harsh chemical sterilants (like Vaporized Hydrogen Peroxide – VHP).

• Walls and Ceilings: Modular sandwich panels with High-Pressure Laminate (HPL) or stainless steel facings are preferred.
• Flooring: Seamless poured epoxy or heat-welded vinyl with coved corners (where the floor curves up the wall) to eliminate 90-degree angles where bacteria can hide.
• Fixtures: Flush-mounted LED lighting, concealed wiring, and sloped windowsills to prevent dust accumulation.

Environmental Monitoring and Validation

A pharmaceutical cleanroom is not a “set it and forget it” system. It requires continuous proof that it is operating within specifications.

Continuous Monitoring

Modern facilities employ automated Environmental Monitoring Systems (EMS) that continuously track:

• Airborne particle counts (viable and non-viable)
• Temperature and Relative Humidity (RH)
• Differential pressure between rooms
• Airflow velocity

If any parameter drifts out of the validated range, the system triggers immediate alarms.

The Validation Lifecycle (IQ/OQ/PQ)

Before a facility can manufacture drugs for human use, it must undergo rigorous validation:

1. Installation Qualification (IQ): Verifies that the cleanroom and equipment were built and installed exactly as designed.
2. Operational Qualification (OQ): Verifies that the HVAC system, HEPA filters, and pressure cascades operate correctly under “at-rest” conditions.
3. Performance Qualification (PQ): The ultimate test. Verifies that the cleanroom maintains its required ISO/GMP grade under full “operational” conditions, with personnel working and machinery running.

Conclusion

Designing a pharmaceutical cleanroom that meets FDA and EU GMP standards is a monumental engineering challenge. It requires a deep understanding of contamination control, HVAC dynamics, and regulatory compliance.

A poorly designed facility will not only fail its validation but could also jeopardize the safety of the final product. Partnering with an experienced cleanroom manufacturer who understands the nuances of GMP compliance is the most critical decision in the project lifecycle.

If you are planning a new pharmaceutical facility or upgrading an existing one to meet the latest Annex 1 guidelines, the engineering team at RVCleans is ready to provide expert consultation and turnkey modular solutions.

Frequently Asked Questions (FAQ)

Q: What is the difference between viable and non-viable particles?

A: Non-viable particles are inanimate objects like dust, skin flakes, or clothing fibers. Viable particles are living microorganisms (bacteria, yeast, mold) that can multiply. Pharmaceutical cleanrooms must monitor and control both, as non-viable particles often act as “rafts” carrying viable microbes.

Q: Can I use a standard ISO 5 cleanroom for aseptic filling?

A: Not necessarily. While EU GMP Grade A requires ISO 5 particulate levels, it also mandates strict limits on viable microbes (e.g., <1 CFU per cubic meter) and requires unidirectional airflow. A standard ISO 5 room designed for electronics manufacturing will not meet these biological requirements.

Q: How often must a pharmaceutical cleanroom be re-certified?

A: According to EU GMP Annex 1, Grade A and B zones must be re-qualified at least every 6 months. Grade C and D zones must be re-qualified at least every 12 months.
