The Heating, Ventilation, and Air Conditioning (HVAC) system is the “heart” of a cleanroom facility. Unlike standard commercial HVAC, cleanroom systems must simultaneously control temperature, humidity, particulate concentration, and room pressure with high precision. As a cleanroom HVAC specialist, I will outline the core design methodologies and energy-efficient strategies required for modern high-tech facilities.
1. Air Handling Unit (AHU) Configuration
The AHU for a cleanroom is a specialized piece of equipment designed for high static pressure and multi-stage filtration. It typically features a double-skin, stainless steel construction to prevent air leakage and microbial growth.

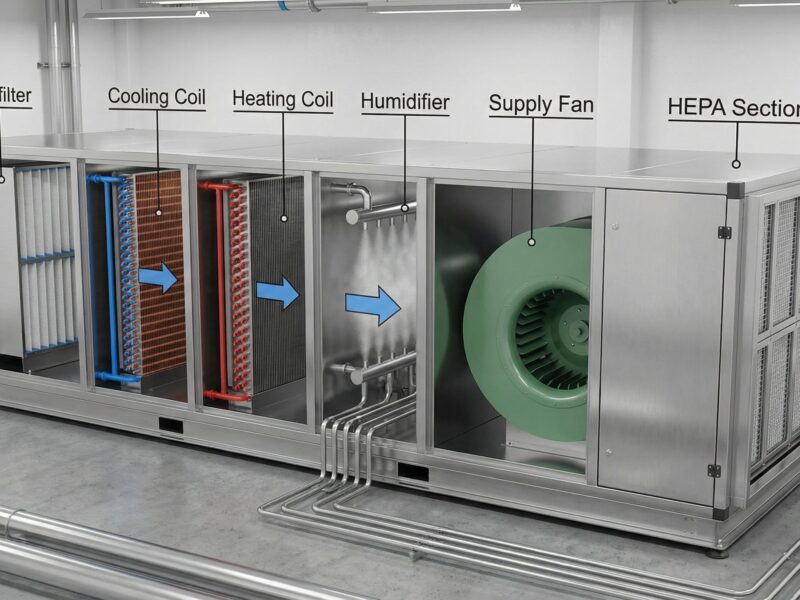

A standard cleanroom AHU includes:
- Pre-filtration (G4/F7): To protect downstream components from coarse
- Cooling & Dehumidification Coils: Sized to handle both sensible and latent heat
- Reheat Coils: Used for precise temperature control after
- Humidification Section: Typically using dry steam to avoid mineral
- Supply Fan: Often a direct-drive plug fan with a Variable Frequency Drive (VFD).
2. Airflow Patterns and ISO Classification
The choice of airflow pattern is dictated by the required ISO Cleanliness Class.

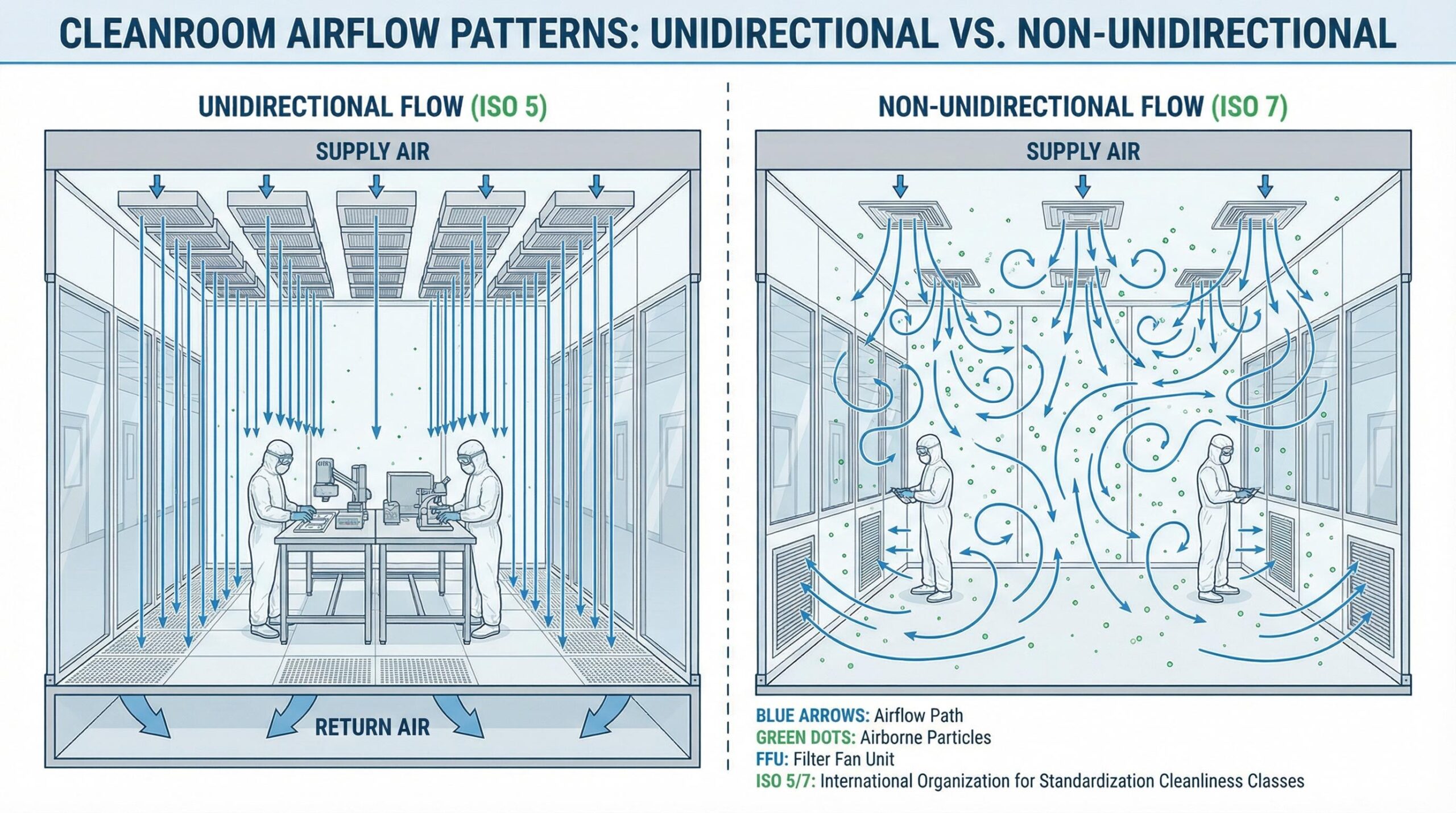

- Unidirectional Flow (Laminar): Required for ISO 5 and above. Air moves in parallel streamlines from the ceiling to the floor, effectively “sweeping” particles away from critical processes.
- Non-unidirectional Flow (Turbulent): Suitable for ISO 6 to ISO 9. Air is introduced through ceiling diffusers and mixes with room air, diluting the particle concentration before being exhausted through side-wall returns.
3. Psychrometric Analysis and Load Calculation
Designing a stable cleanroom environment requires a deep understanding of the thermodynamic properties of air.
The design process involves:
- Total Heat Load Calculation: Summing internal gains (equipment, lighting, personnel) and external gains (conduction, radiation).
- Air Change Rate (ACH): Determining the volume of air required to maintain cleanliness. For ISO 7, this is typically 30-60 ACH; for ISO 5, it can exceed 300 ACH.

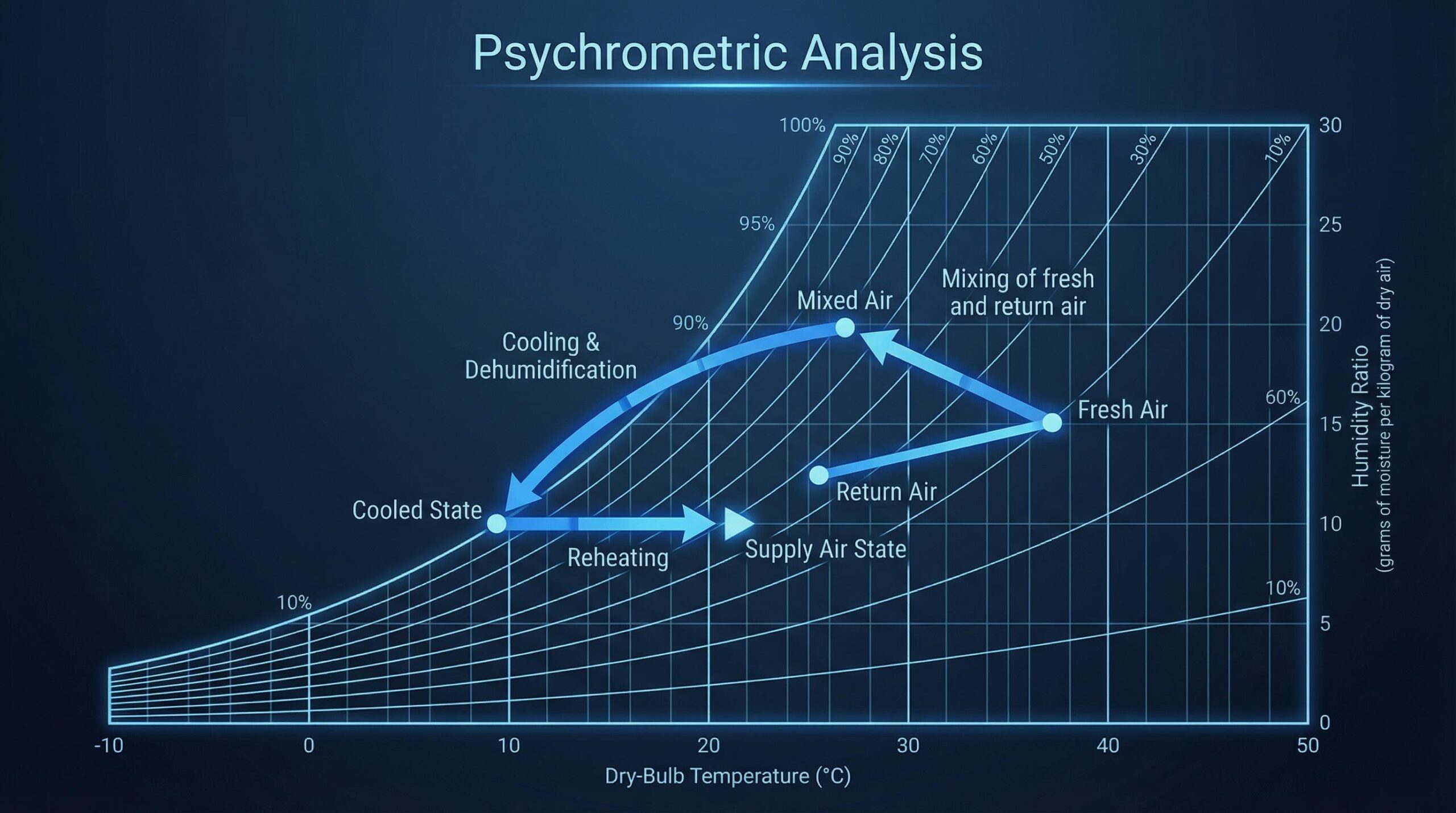

- Process Mapping: Plotting the mixing, cooling, dehumidification, and reheating stages on a psychrometric chart to ensure the supply air state meets the room’s
4. Energy Efficiency and Sustainability
Cleanroom HVAC systems are energy-intensive. Modern designs incorporate several “green” technologies:
- Heat Recovery Systems: Utilizing run-around loops or heat wheels to recover energy from exhaust air.
- Fan Filter Units (FFU) with EC Motors: Electronically commutated motors offer significantly higher efficiency at partial loads.
- Demand-Controlled Ventilation: Reducing ACH during non-operational hours (night setback) while maintaining positive pressure.
- Dry Cooling Coils (DCC): Separating sensible cooling from latent cooling to reduce reheating energy.
5. Expert Design Checklist
- Redundancy: Ensure critical fans and pumps have N+1 redundancy to prevent facility
- Maintenance Access: Design the AHU room with sufficient space for coil removal and filter replacement.
- Acoustic Control: Implement silencers and vibration isolators to meet the strict noise criteria (typically < 65 dBA).
- Control Logic: Use high-speed DDC controllers with PID loops for stable temperature (±0.5°C) and humidity (±2% RH) control.
6. Conclusion
A successful cleanroom HVAC design is a balance of performance, reliability, and energy efficiency. By integrating advanced AHU technology, optimized airflow patterns, and rigorous psychrometric analysis, engineers can create controlled environments that meet the most demanding industrial requirements while minimizing operational costs.
